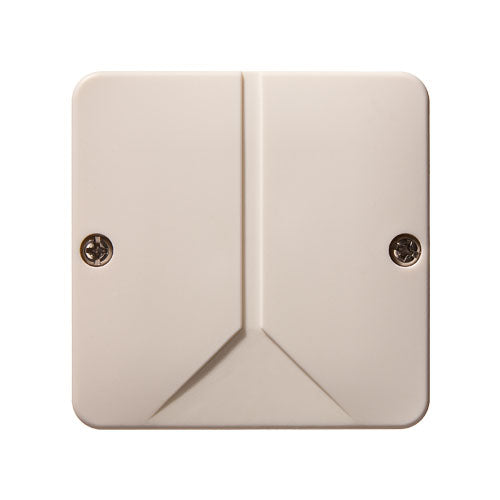

RECTSMINI2OUT - 2-Relay External Mini Receiver

by Transmitter Solutions
Product Code: RECTSMINI2OUT
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$73.71
Shipping calculated at checkout.

The RECTSMINI2OUT is a compact, long-range 2-relay receiver designed for gates, doors, lighting, and security systems. With a wireless range of up to 1,200 feet, it supports 85 rolling-code transmitters and offers momentary or latching relay options. Pairing transmitters is quick and secure via the onboard Learn button. Housed in a weather-resistant IP65-rated case and compatible with 12/24V AC/DC power, this receiver is ideal for both indoor and outdoor installations, including solar applications. Comes standard with a whip antenna and supports optional coax antenna setups.
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

FEATURES

  • 433 MHz – Available in 2 Channel and 4 Channel
  • Long Range Receiver – up to 1200 feet
  • Push to Learn up to 85 remotes
  • Exterior Grade Quality/Interior Housing Available
  • Momentary, or Latching Relay Options
  • Whip Antenna Included
  • Coax Antenna Optional


Available in Low Consumption for Solar Applications (Part No. RECTS433-LC).5 – x mA Standby, 20 – 22 mA when relay is energized


SPECIFICATIONS

  • Receiver type Superheterodyne
  • Local oscillator frequency 6.6128 MHz
  • Demodulation AM/ASK
  • Local Oscillator VCO / PLL
  • Channel width > 25 KHz
  • Intermediate frequency 10.7 MHz
  • Input sensitivity -115 dBm
  • Local oscillator spurious emissions < -57 dBm
  • Input load: 50 Ohm
  • Power supply: 12 / 24 Vac/dc
  • Consumption:
  • Steady / 12 Vdc ( 2 relays excited) 15 mA / 49 mA
  • Steady / 24 Vdc ( 2 relays excited) 19 mA / 55 mA
  • Max applicable power 24VA
  • Relay number 2 or 4
  • Contacts NO, NO/NC
  • Memory capacity 85 user codesTX
  • Security code Rolling code 64
  • Max code combination number 2
  • Operating temperature -4°/+158°F
  • Housing protection IP65

Weight 4.5 oz

Overall dimensions 3-1/8 x 3-1/8 x 2 inches
